2088G5S22A1M5E5

2088G5S22A1M5E5

Add to Quote

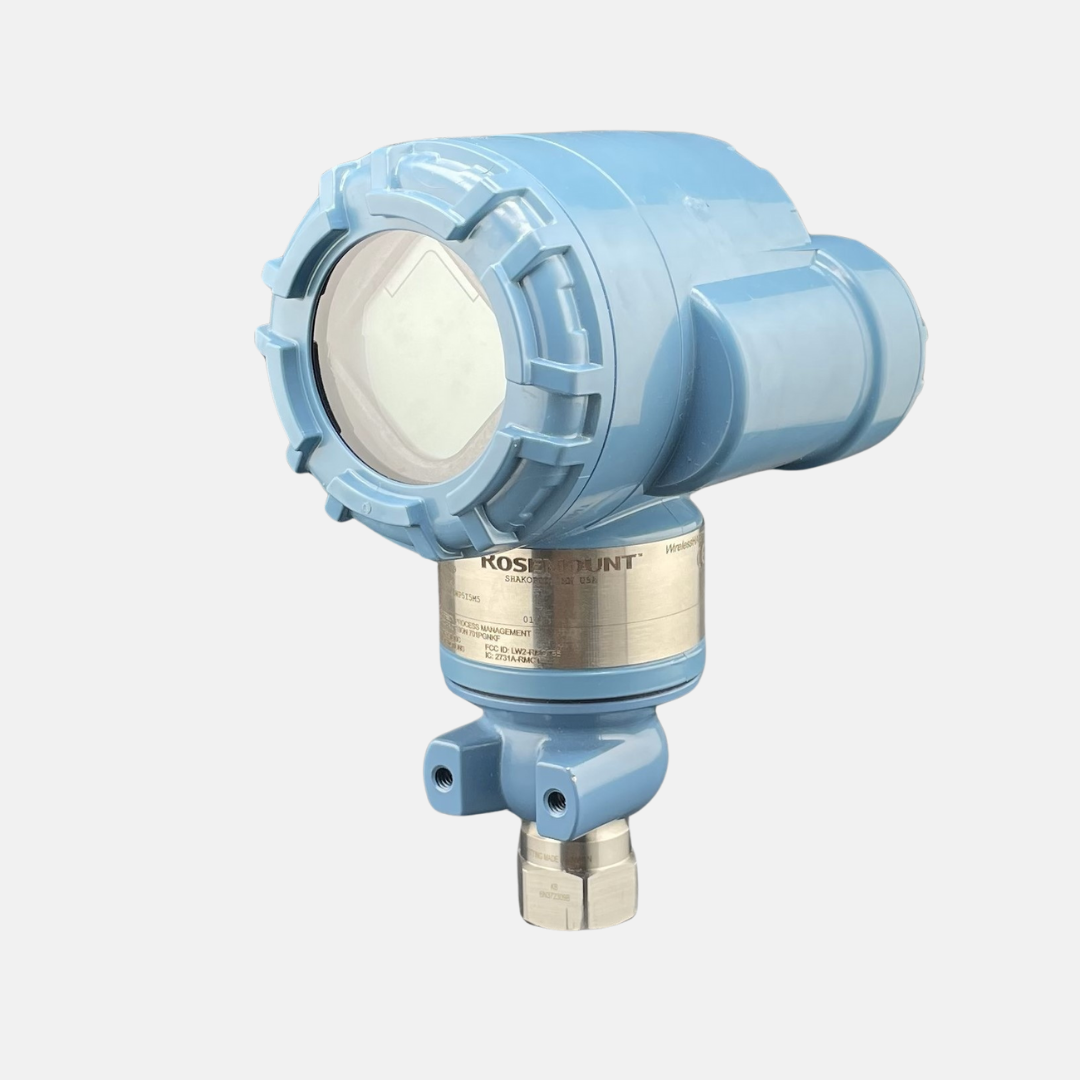

The Rosemount 2088G5S22A1M5E5 is a high-accuracy gauge pressure transmitter engineered for rugged industrial environments. With advanced HART communication, durable stainless steel construction, and a user-friendly display, this model offers exceptional performance in a wide range of pressure measurement applications.

• High Pressure Capability: Handles extreme pressure ranges up to 10,000 psi with stability and accuracy.
• Digital Communication: HART protocol enables remote calibration, diagnostics, and configuration.
• Rugged Design: Built from corrosion-resistant 316L stainless steel for long-term performance.
• User-Friendly Interface: LCD screen provides real-time process readings and configuration at a glance.
• Safety-Certified: Complies with FM standards for hazardous environments, including explosion and dust ignition-proof ratings.

• Manufacturer: Rosemount
• Model Number: 2088G5S22A1M5E5
• Transmitter Type: Gauge (G)
• Pressure Range: 14.7 to 10,000 psi (–1.0 to 689 bar)
• Alternate Pressure Range (Absolute): 0 to 10,000 psia (689 bar)
• Output Signal: 4-20 mA DC with Digital HART Protocol
• Material of Construction: 316L Stainless Steel (diaphragm & wetted parts), Silicone Fill Fluid
• Process Connection: 1/2-14 NPT Female
• Conduit Entry: 1/2-14 NPT
• Display & Interface: LCD Display, configured for Engineering Units
• Certifications: FM Explosion Proof, Dust Ignition-proof
